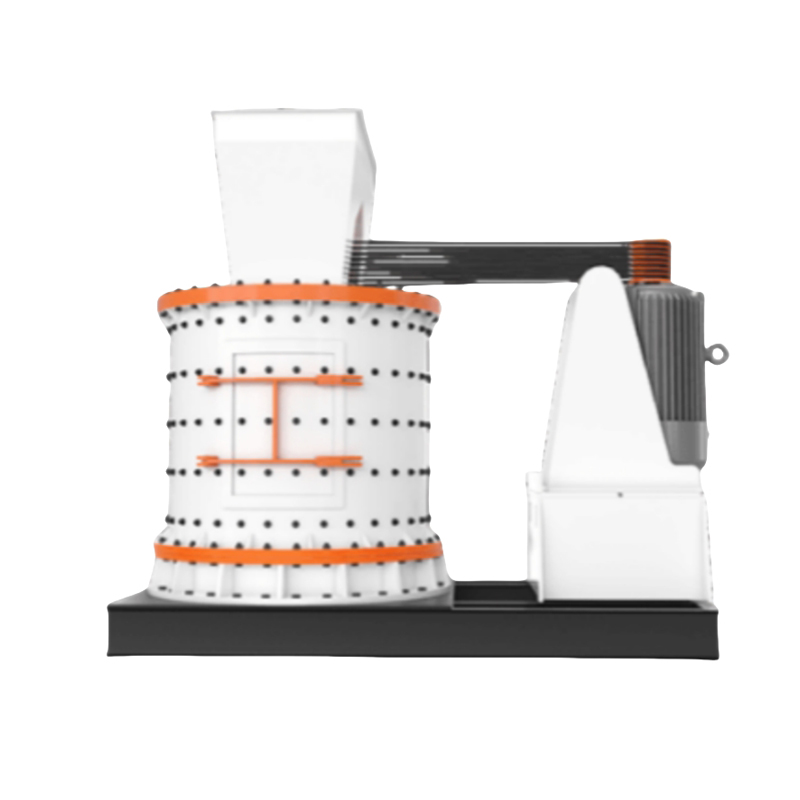

CNC Vertical Shaft Sand Making Machine
The vertical shaft sand making machine integrates both domestic and international advanced product design technologies to produce fine and coarse grinding materials. It is widely used for crushing medium-hard stones such as iron ore, sandstone, slag, and coal gangue.
This machine is particularly effective in addressing the challenges of crushing larger river pebbles and other hard materials, resolving issues related to the difficulty of crushing and shaping hard stones.
- sale1@hnmineeq.com
- 0086 16638156296
- Information
CNC Vertical Shaft Sand Making Machine
⊙Product introduction
The vertical shaft sand making machine, also known as the vertical axis sand making machine, is a new generation of stone crushing equipment developed by optimizing the main technical parameters based on the technology of similar crushers both domestically and internationally. Its design integrates the features of hammer crushers and impact crushers, making it particularly suitable for crushing medium-hard, low-moisture-content brittle materials in industries such as building materials, mining, chemical, metallurgy, cement, and coal. In the cement industry, this equipment is used as a secondary crusher.
⊙Features
High Efficiency: The CNC Vertical Shaft Sand Making Machine boasts superior efficiency in transforming raw materials into high-quality sand, significantly reducing production time.
Precision Control: Equipped with advanced CNC technology, it ensures precise operation and consistent output, producing uniformly shaped aggregates.
Versatile Applications: This machine is suitable for processing a variety of medium-hard materials, including iron ore, sandstone, and coal gangue, making it adaptable for different industries.
Robust Construction: Built with durable materials, it can withstand heavy workloads and harsh operating conditions, ensuring long-term reliability.
Low Maintenance: Its intelligent design minimizes wear and tear, resulting in reduced maintenance costs and increased uptime for sand production.
⊙Product Parameters
| Model | Rotor diameter (mm) | Simplified height (mm) | Speed of mainshaft (r/min) | Feed particle (mm) | Overall Dimensions (mm) | production capacity (t/h) | Motor type | Motor power (4K) | Dimensions (mm) |
| 800 | 650 | 800 | 1350 | 50 | 0-5 | 5-15 | 4P | 30 | 2200*860*1980 |
| 1000 | 800 | 850 | 970 | 70 | 0-5 | 10-30 | 4P | 55 | 2700*1160*2000 |
| 1250 | 1000 | 850 | 740 | 100 | 0-5 | 20-60 | 4P | 75 | 2800*1400*2730 |
| 1500 | 1250 | 1000 | 650 | 100 | 0-5 | 30-80 | 4P | 110 | 3100*1900*2300 |
| 1750 | 1560 | 1410 | 600 | 100 | 0-5 | 40-100 | 4P | 185-200 | 3350*2100*2800 |
| 2000 | 1740 | 1550 | 500 | 100 | 0-5 | 80-200 | 4P | 220-250 | 4100*2660*2670 |

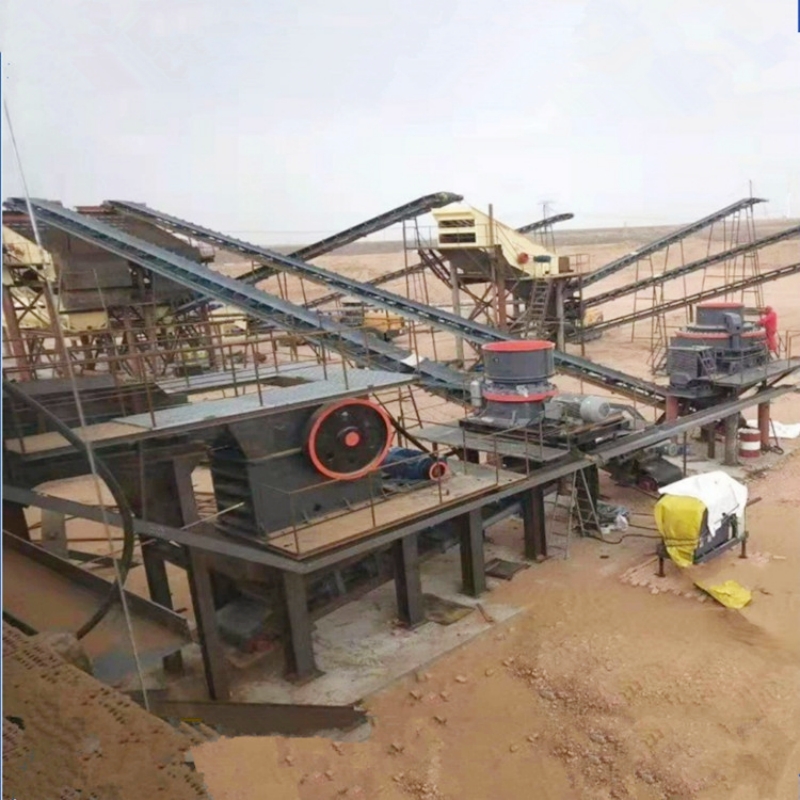

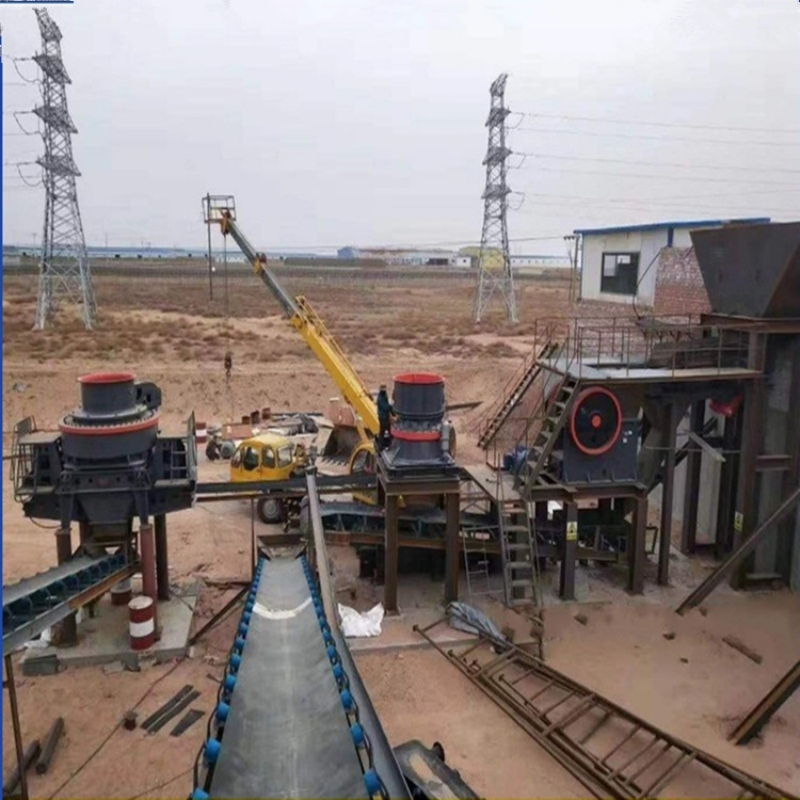

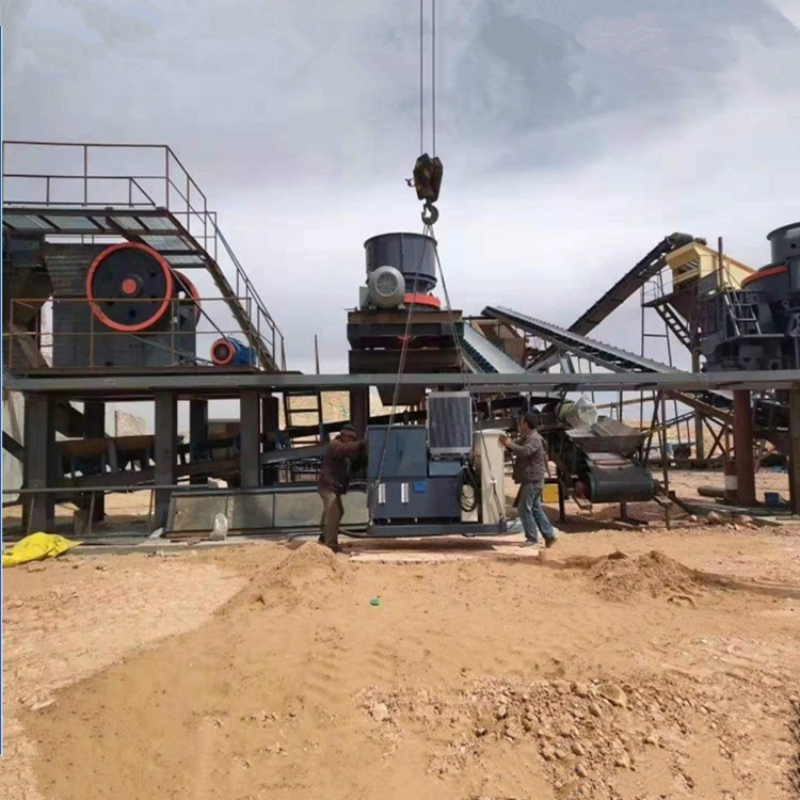

⊙Application Field
The CNC Vertical Shaft Sand Making Machine is widely utilized across various industries, primarily in construction for producing high-quality sand and aggregates essential for concrete and asphalt. Its versatility extends to mining operations, where it efficiently processes ores and minerals, reducing waste in the extraction process. Additionally, it plays a crucial role in road and bridge construction by supplying durable fine aggregates. In the manufacturing of building materials, it contributes to the consistent production of bricks and tiles. Furthermore, it supports environmental sustainability by recycling waste materials into usable sand and aggregates.

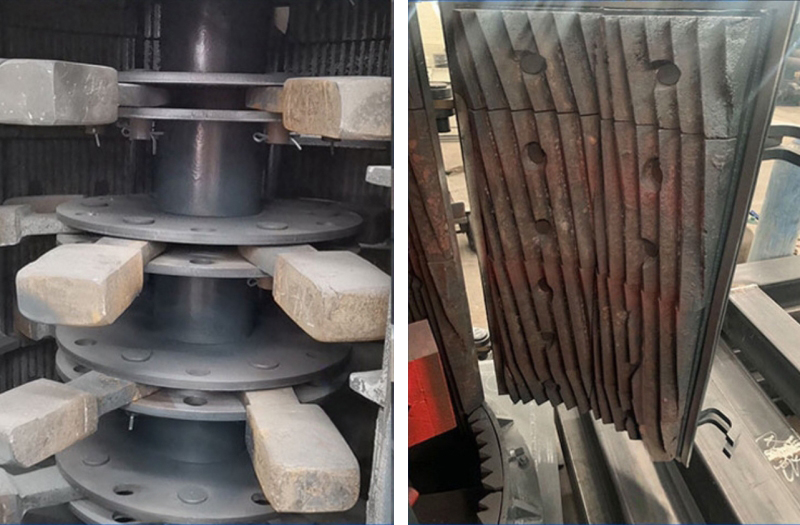

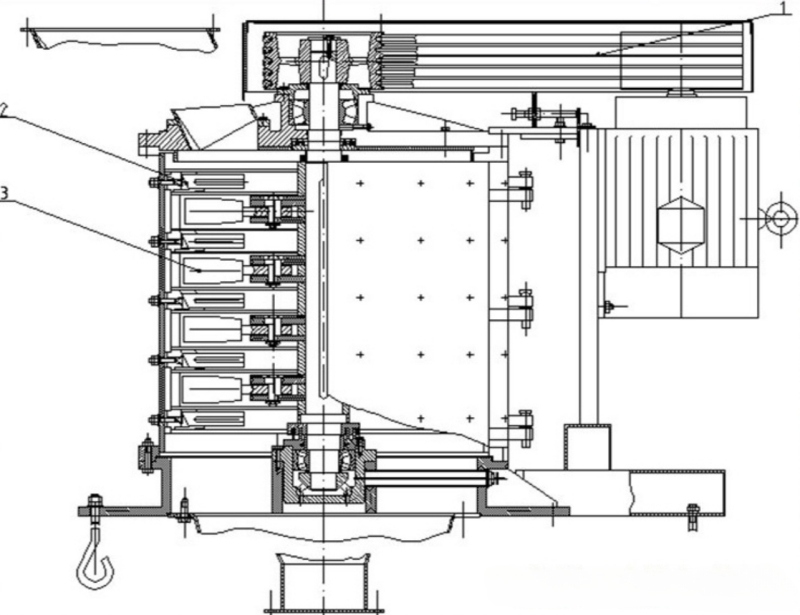

⊙Machine Structure and Working Principle
The vertical shaft sand making machine utilizes a fixed and precise impact crushing principle, employing multiple levels of classification processing to achieve more uniform granule size and higher sand output. Notably, the hammerhead component is made of high-alloy materials, with additional elements such as copper and various trace metals added to enhance its durability. This design reduces the frequency of hammerhead replacements, ultimately lowering maintenance costs.

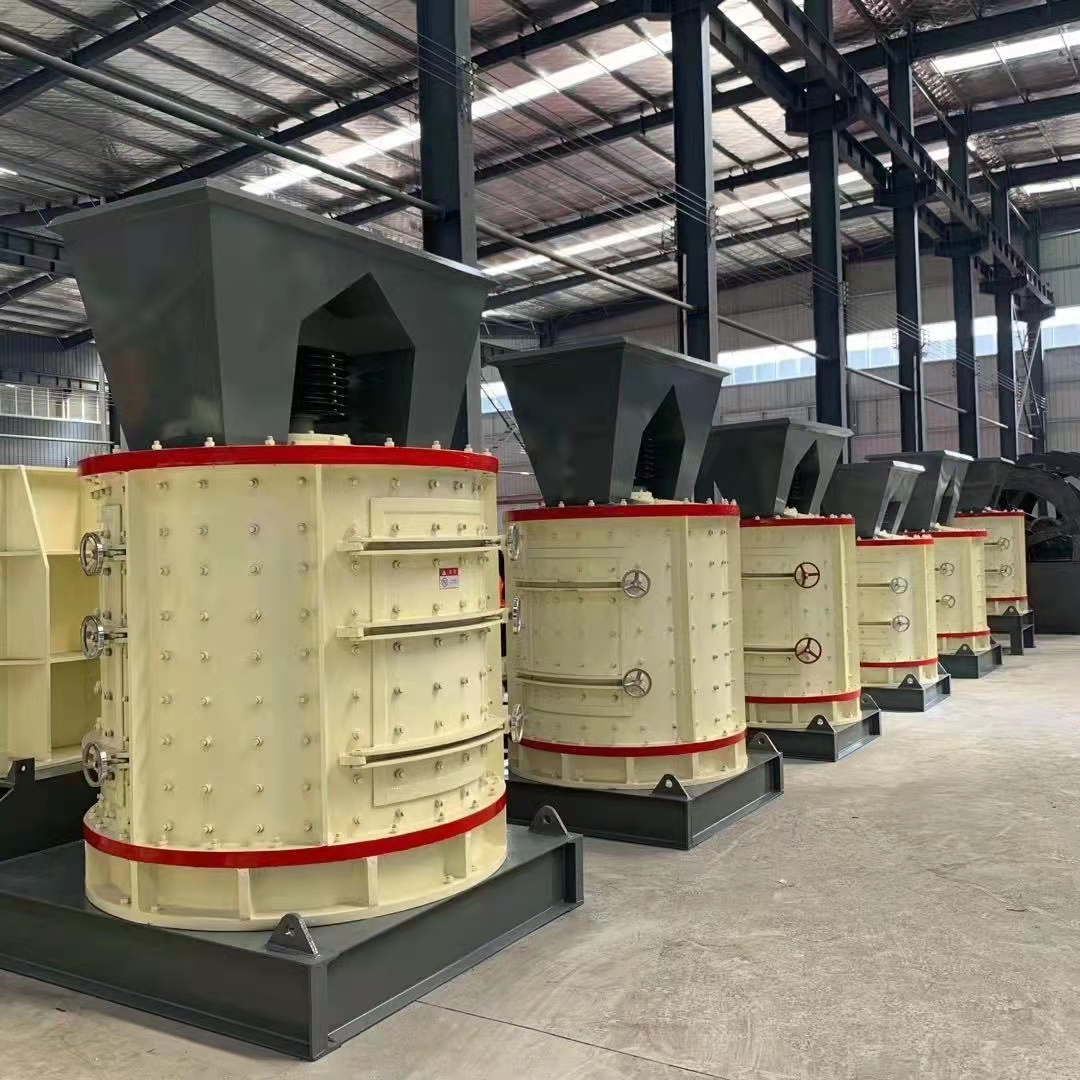

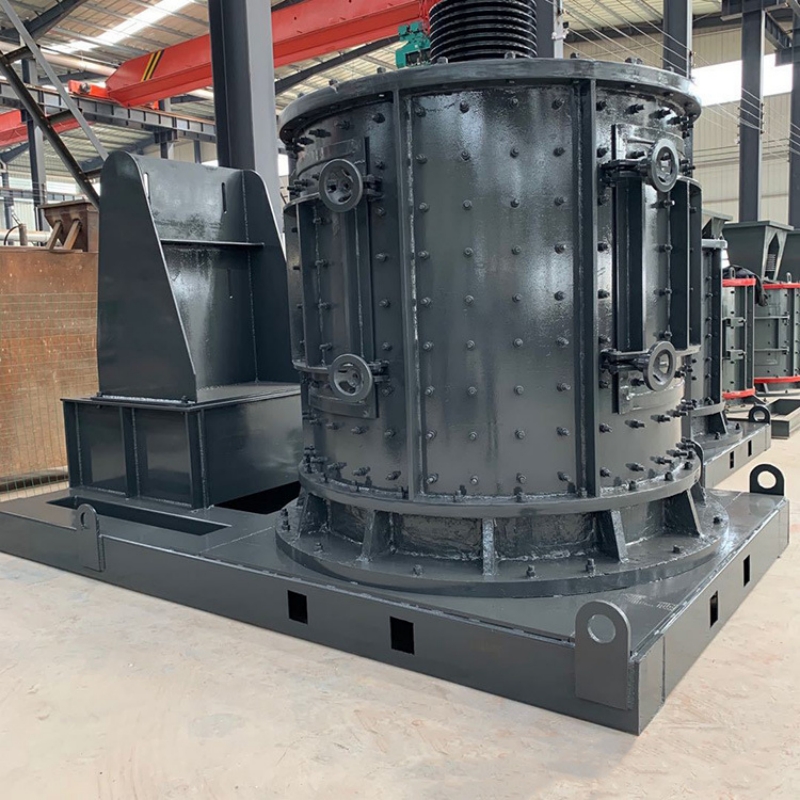

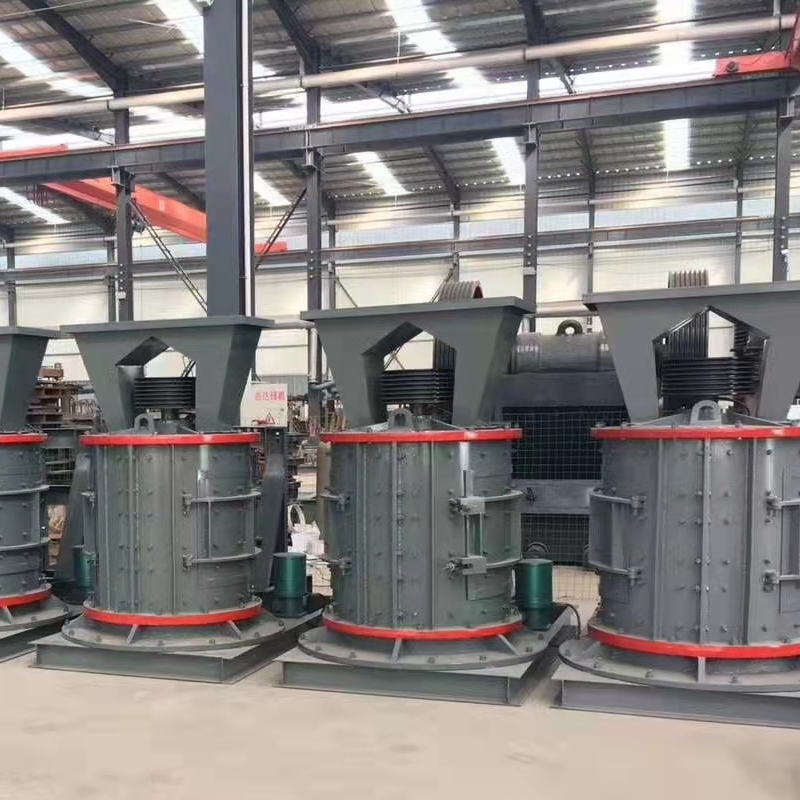

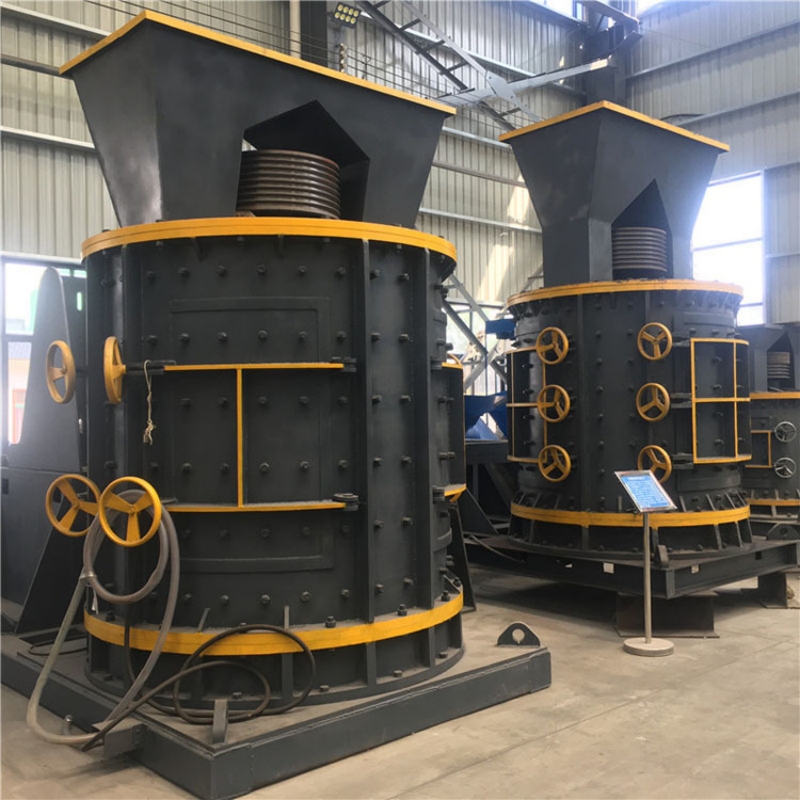

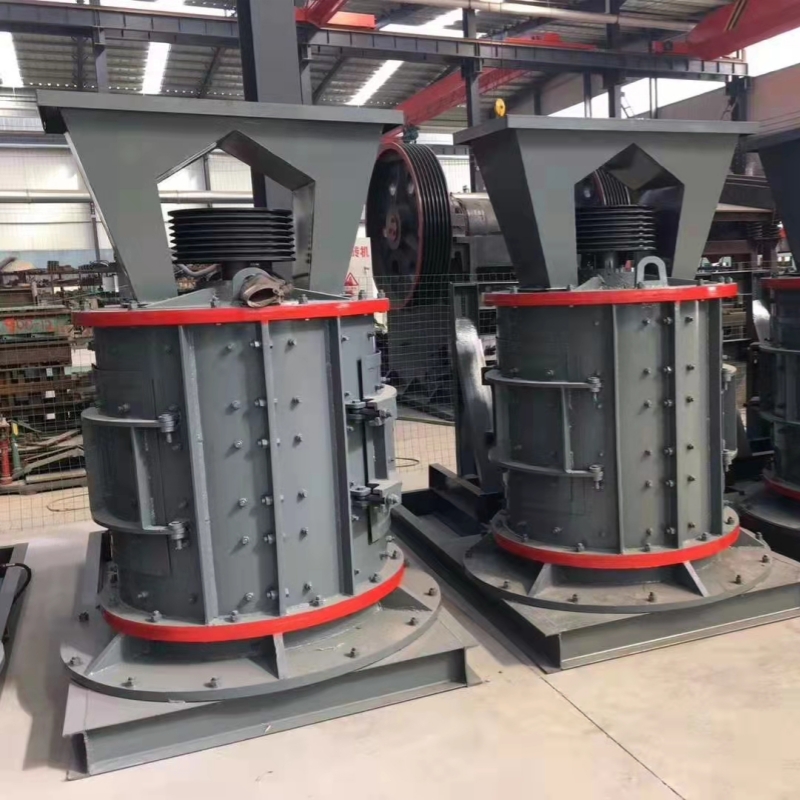

⊙Factory product display
Our factory showcases the Vertical Shaft Sand Making Machine, a state-of-the-art equipment designed for efficient sand production. Combining advanced technology and robust construction, this machine is tailored for various applications in industries like construction, mining, and chemical processing. It excels in producing high-quality sand while maintaining energy efficiency and low operational costs. Visit our facility to see this innovative machine in action and learn how it can enhance your production capabilities!
