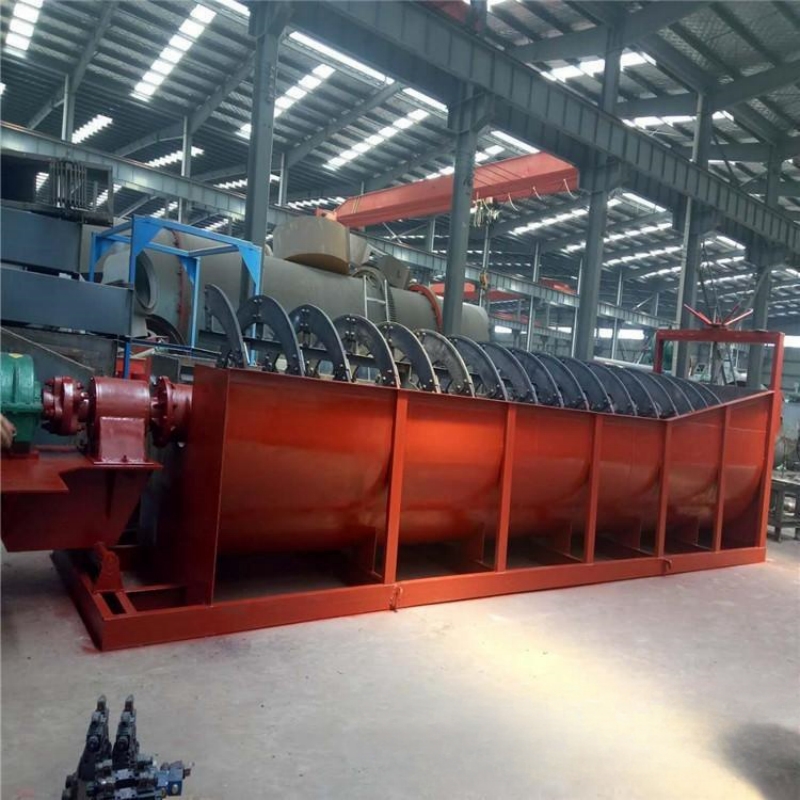

Spiral Sand Washing Machine
The spiral sand washer is designed to clean and separate dirt and impurities from sand and gravel, featuring a reliable drive system and adjustable overflow weir for effective washing and dewatering. Suitable for industries such as road construction and hydropower, it efficiently handles materials within 0-30mm, making it ideal for construction sand and gravel. Available in single and double screw configurations, the double screw version offers higher efficiency and greater output, with easy maintenance and a simple structure for enhanced operational efficiency.
- 5-260 t/h
- 6-300 m³/h
- sale1@hnmineeq.com
- 0086 16638156296
- Information
Fine Sand Recovery Machine
⊙Product introduction
Spiral sand washer effectively cleans and separates dirt and impurities from sand and gravel, featuring a novel sealing structure, adjustable overflow weir, and reliable drive mechanism to ensure efficient washing and dewatering. It is suitable for various industries, including road construction, hydropower, and building, specifically designed for the washing, classification, and impurity removal of both fine and coarse materials, making it ideal for construction and road sand and gravel. This machine is commonly used on construction sites, sand and gravel plants, precast factories, and hydropower projects for mud removal and screening tasks, and can also be utilized for ore sorting. It effectively processes materials within the size range of 0-30mm, efficiently washing away dirt and dust to produce clean materials. The machine's simple structure facilitates easy maintenance, and it offers high washing efficiency. The spiral sand washer is available in both single and double screw configurations, with the double screw version providing higher efficiency and greater output while still processing materials within 0-30mm.
⊙Features
High Cleaning Efficiency: The unique sealed structure and adjustable overflow weir ensure excellent cleaning and dewatering performance.
Durable and Reliable: Made from high-quality materials, it offers a long service life and stable operational performance.
Strong Processing Capacity: Effectively handles materials within the 0-30mm range, suitable for both fine and coarse particle washing.
Simple Operation: The straightforward design facilitates easy maintenance and operation, reducing labor costs.
Wide Application: Widely used in industries such as highways, hydropower, and construction for washing, grading, and removing impurities.

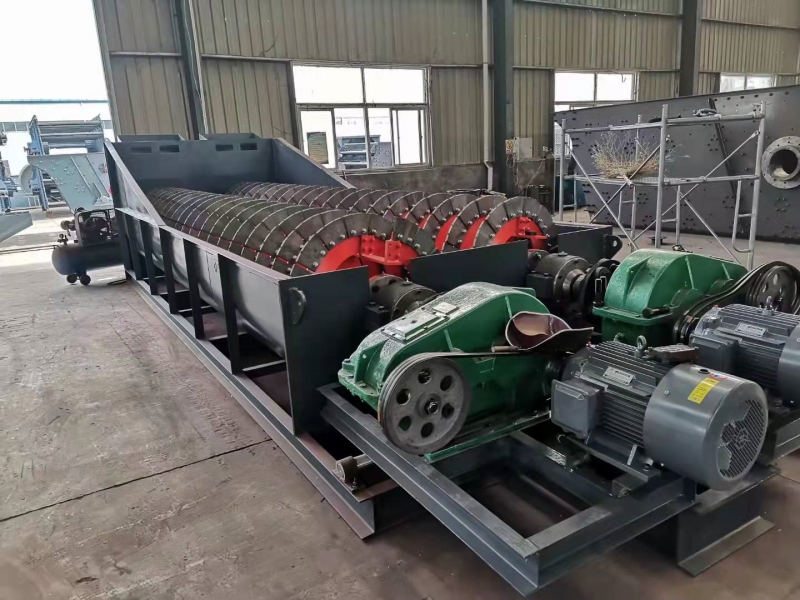

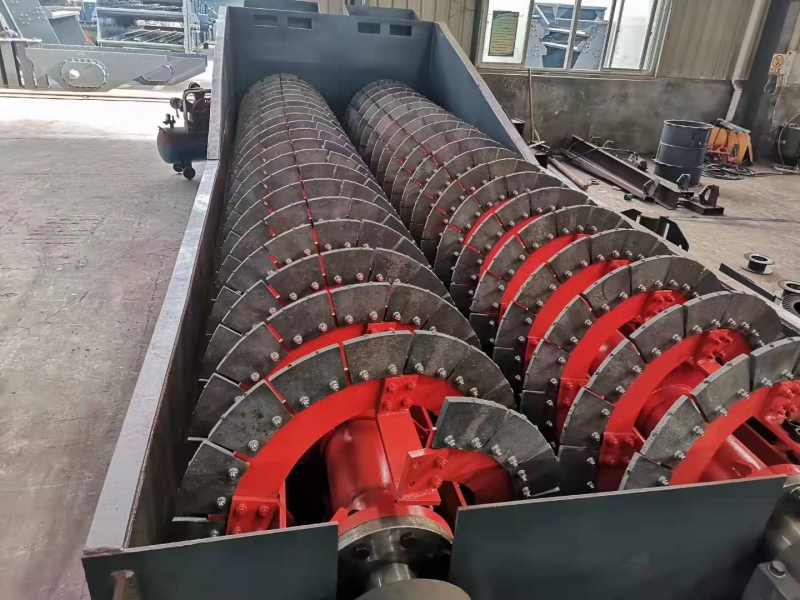

Double and Single Spiral Options: Available in both double spiral and single spiral models, with the double spiral offering higher processing efficiency and output.
⊙Product Parameters
Model | Screw diameter (mm) | Sink length (mm) | Feed size (mm) | Screw speed (r/min) | Screw speed (t/h) | Power (kw) | water consumption (t/h) | Dimensions (mm) |
XL515 | 515 | 7615 | ≤ 10 | 38 | 5-15 | 5.5 | 6-60 | 8100*2345*1450 |
XL765 | 765 | 7620 | ≤ 10 | 26 | 20-60 | 11 | 9-63 | 8545*2650*1870 |
XL920 | 920 | 7585 | ≤ 10 | 100 | 40-110 | 11 | 10-80 | 8500*2100*3600 |
2XL920 | 920 | 7585 | ≤ 10 | 200 | 80-220 | 2*11 | 20-160 | 8420*3760*3960 |
XL1120 | 1120 | 9750 | ≤ 10 | 175 | 50-130 | 18.5 | 20-150 | 1078*3980*4170 |
2XL1120 | 1120 | 9750 | ≤10 | 350 | 100-260 | 2*18.5 | 40-300 | 1097*5250*4720 |
⊙Application Field

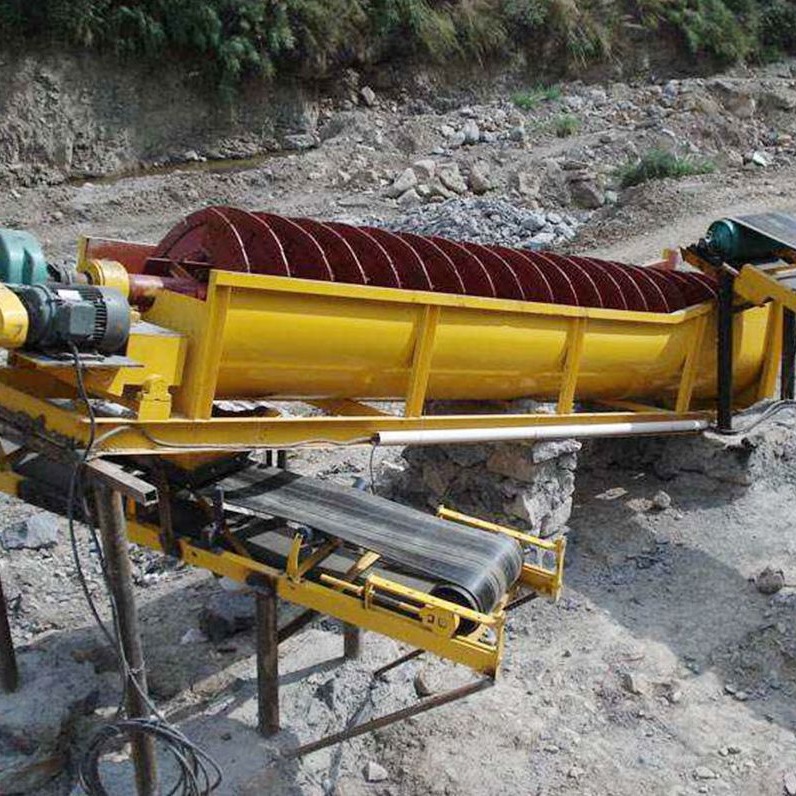

Spiral sand washer is widely used in various industries, including construction, hydropower, and road building. It effectively cleans and separates soil and impurities from sand and gravel, making it ideal for producing high-quality aggregates for concrete and asphalt. Additionally, it is suitable for washing and classifying materials in sand and gravel plants, prefabricated component factories, and hydropower construction sites. The machine can also be utilized in mineral processing to separate materials and remove contaminants, ensuring clean and reliable output.
⊙Machine Structure and Working Principle

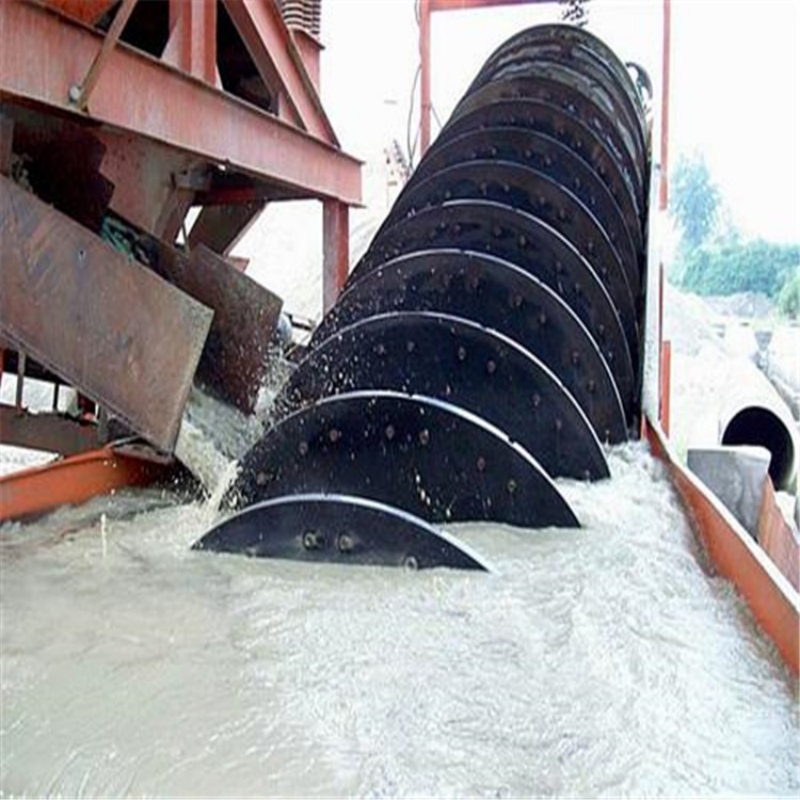

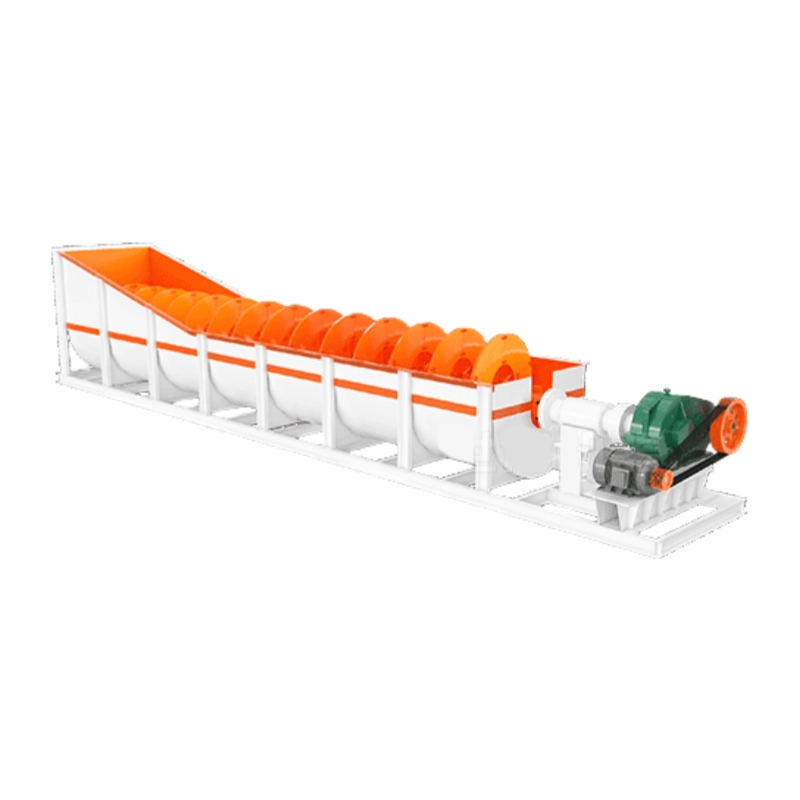

Spiral sand washer consists mainly of a trough-like structure, a spiral blade, and a transmission device. Materials are fed into the washing tank, where the spiral blade rotates through a motor-driven gearbox. The rotation of the spiral blade stirs the material, causing the sand and gravel to roll within the water. This process helps to wash away impurities such as soil and dust. Clean material is lifted by the spiral blade and discharged, while excess water and contaminants are removed through an overflow weir. The machine efficiently handles material cleaning, classification, and dewatering tasks.
⊙Customer case
A client from Australia purchased Olive Technology's double spiral sand washer for their large-scale construction project along the coast. The machine was required to handle high volumes of sand mixed with silt and impurities. After installation, the equipment exceeded their expectations by efficiently processing materials at a rate of 150 tons per hour, achieving both high-quality cleaning and reliable dehydration. The adjustable overflow weir and sealed design significantly improved production efficiency, minimizing downtime for maintenance. The client reported a 20% increase in operational productivity and expressed satisfaction with both the machine’s performance and Olive Technology’s timely technical support.
