Jaw Mobile Crushing Station
Jaw Mobile Crushing Station is a versatile and efficient crushing solution designed for on-site operations. It integrates a high-performance jaw crusher with a mobile platform, allowing for easy transportation and quick setup. Ideal for crushing various types of rock, it provides flexibility in mining, quarrying, and construction sites. This station is equipped with advanced technology to ensure consistent crushing performance and reduced downtime, making it perfect for both primary and secondary crushing applications. Its mobility enables convenient movement between different job sites, enhancing productivity and reducing operational costs.

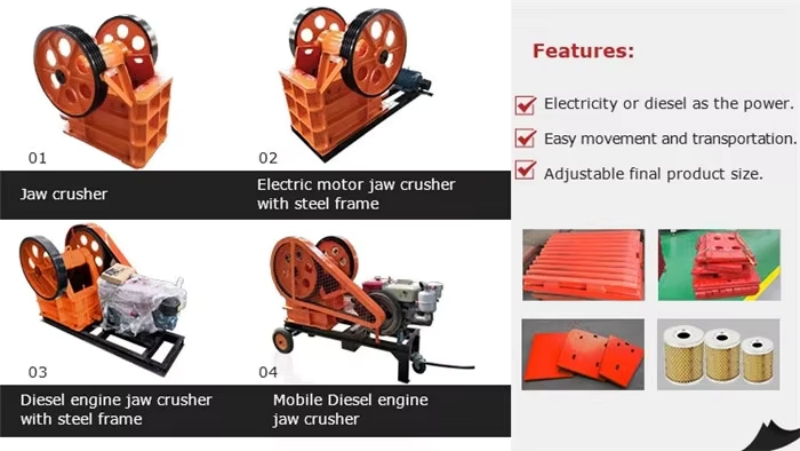

- mini small stone mobile diesel engine jaw crusher breaker supplier

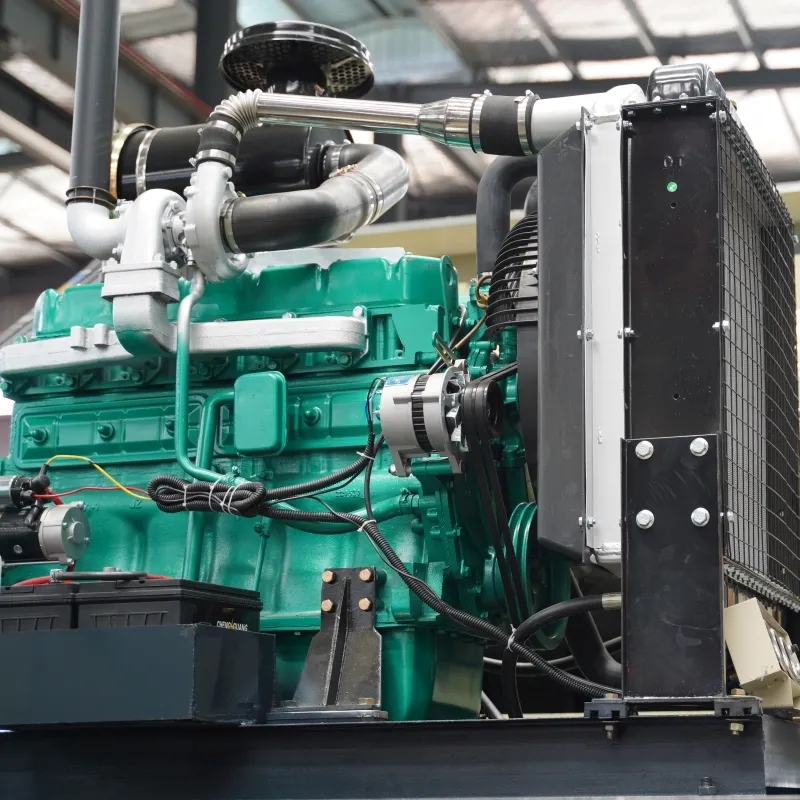

- Motor, Bearing, Gearbox, mobile diesel engine jaw crusher
- Easy to Operate
- sale1@hnmineeq.com
- 0086 16638156296
- Information

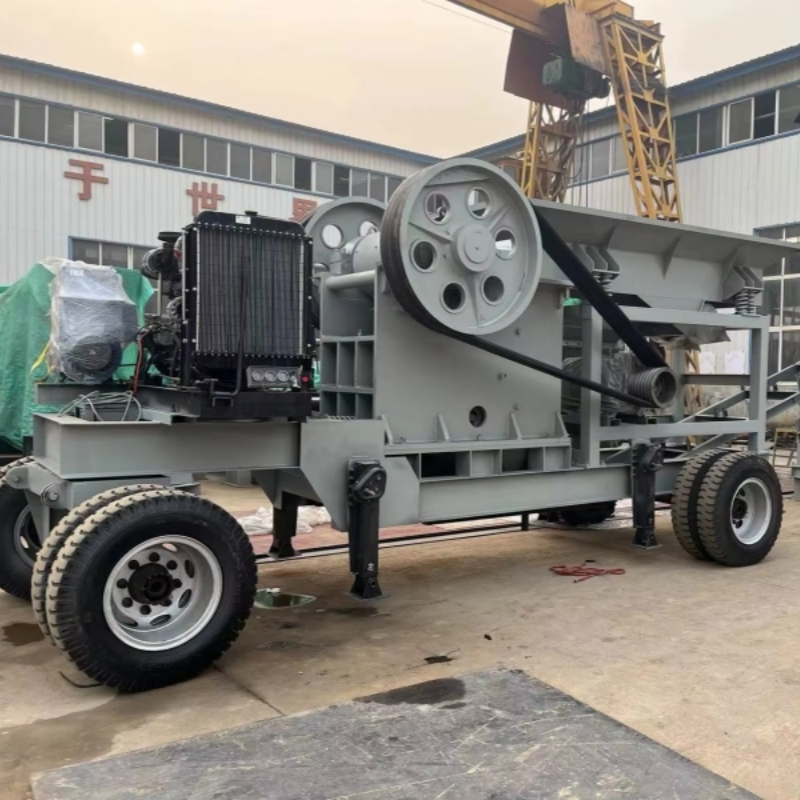

Jaw Mobile Crushing Station
⊙Product introduction
Primary Portable Mobile Mini Stone Jaw Crusher offers a versatile and cost-efficient solution for crushing various stones, including limestone, basalt, and granite. Equipped with a built-in vibrating screen, this crusher excels in both coarse gravel and fine sand production. Its design features two robust jaw plates—a moving jaw and a stationary jaw—that work in tandem, replicating the motion of animal jaws to crush materials effectively. With its simple structure, easy manufacturing, and reliable performance, this jaw crusher is ideal for breaking down large stones or producing fine gravel, making it perfect for a wide range of applications in construction and aggregate industries.
⊙Features
Versatility: Capable of crushing various types of stones, including limestone, basalt, and granite.
Dual Function: Efficient in producing both coarse gravel and fine sand with an integrated vibrating screen.
Simple Structure: Easy to manufacture and maintain, ensuring reliable performance.
Efficient Crushing: Features two jaw plates (moving and stationary) that simulate the motion of animal jaws for efficient material crushing.
Portability: Compact and portable design, making it easy to move and suitable for on-site applications.
⊙Product Parameters

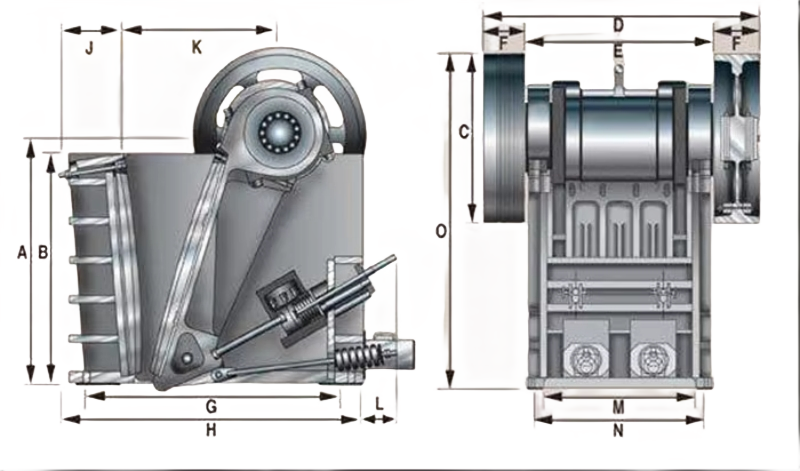

Model | Feed partical size (mm) | discharge partical size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Dimension (mm) |
PE-150×250 | 125 | 10-40 | 2-7 | 5.5 | 0.5 | 720×660×850 |
PE-200×300 | 180 | 15-50 | 3-9 | 7.5 | 0.8 | 910×750×990 |
PE-220×350 | 180 | 18-70 | 10 | 11 | 1.1 | 1000×870×990 |
PE-250×400 | 210 | 20-60 | 15-20 | 15 | 2 | 1300×1090×1270 |
PE-400×600 | 340 | 40-100 | 40-50 | 30 | 6 | 1730×1730×1630 |
PE-500×750 | 425 | 50-100 | 60-80 | 55 | 9.5 | 1980×2080×1870 |
PE-600×900 | 500 | 65-160 | 100 | 75 | 16.5 | 2190×2206×2300 |
PE-750×1060 | 630 | 80-140 | 130-150 | 90 | 25 | 2660×2430×2800 |
PE-150×750 | 125 | 18-48 | 15 | 15 | 2.7 | 1200×1530×1060 |
PE-250×750 | 210 | 25-60 | 20-30 | 22 | 5 | 1380×1750×1540 |
PE-250×1000 | 210 | 25-60 | 40 | 30 | 6 | 1560×1950×1390 |
PE-250×1200 | 210 | 25-60 | 50 | 37 | 7.5 | 2140×1660×1500 |
PE-300×1300 | 250 | 20-90 | 50-60 | 55 | 11.5 | 2720×1950×1600 |

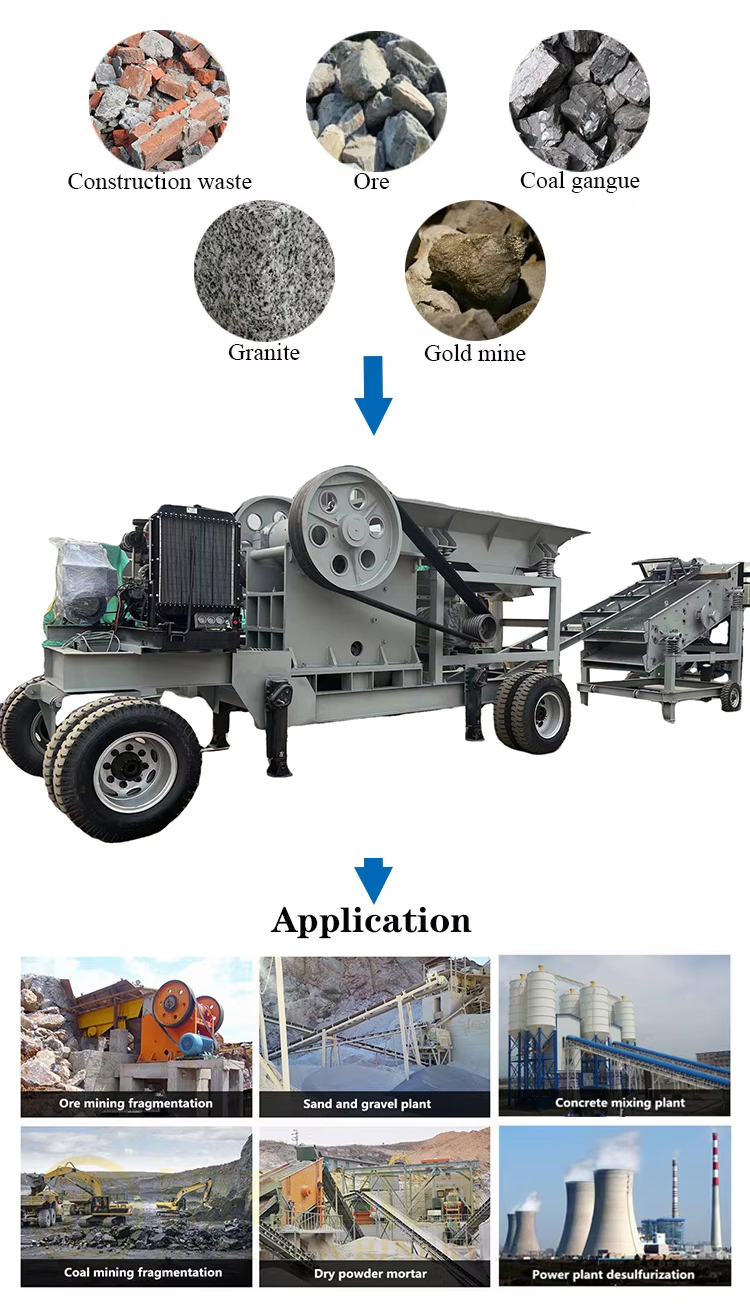

⊙Application Field
Jaw Mobile Crushing Station is widely used in various industries, including construction, mining, infrastructure, and quarrying. It is particularly suitable for producing gravel and sand for building roads, bridges, and highways. Additionally, the crusher is ideal for recycling operations, such as breaking down old concrete or asphalt, as well as for use in large-scale stone processing projects. Its versatility makes it applicable in many fields requiring material crushing and aggregate production.
⊙Machine Structure and Working Principle

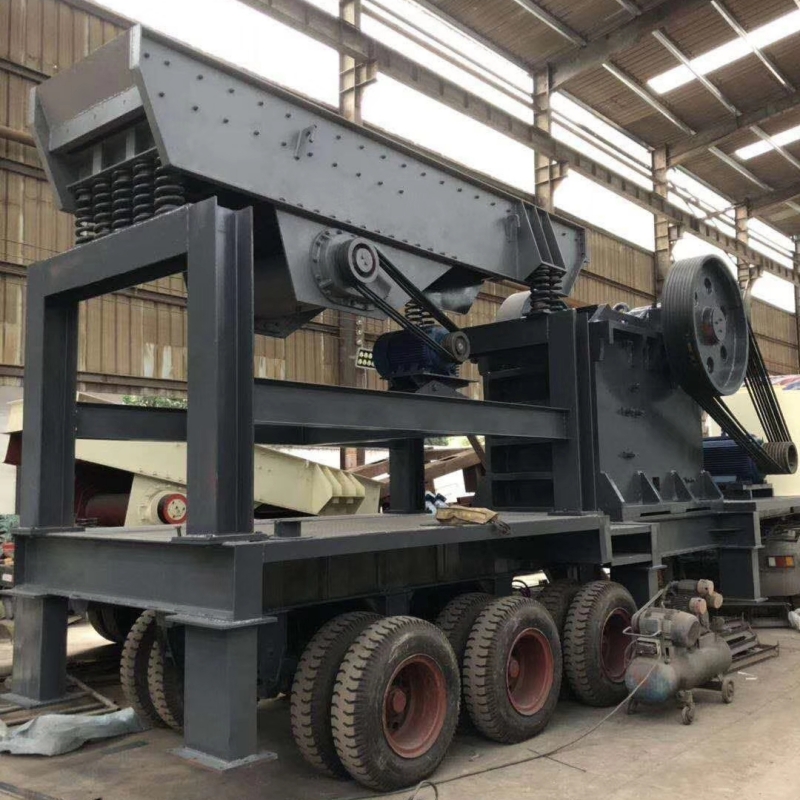

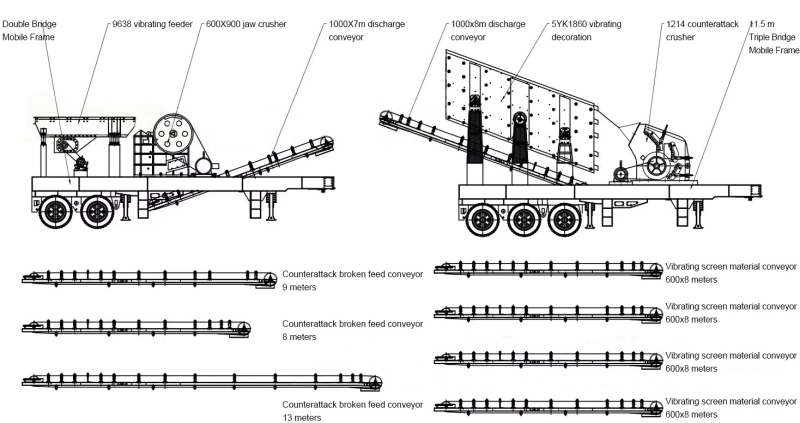

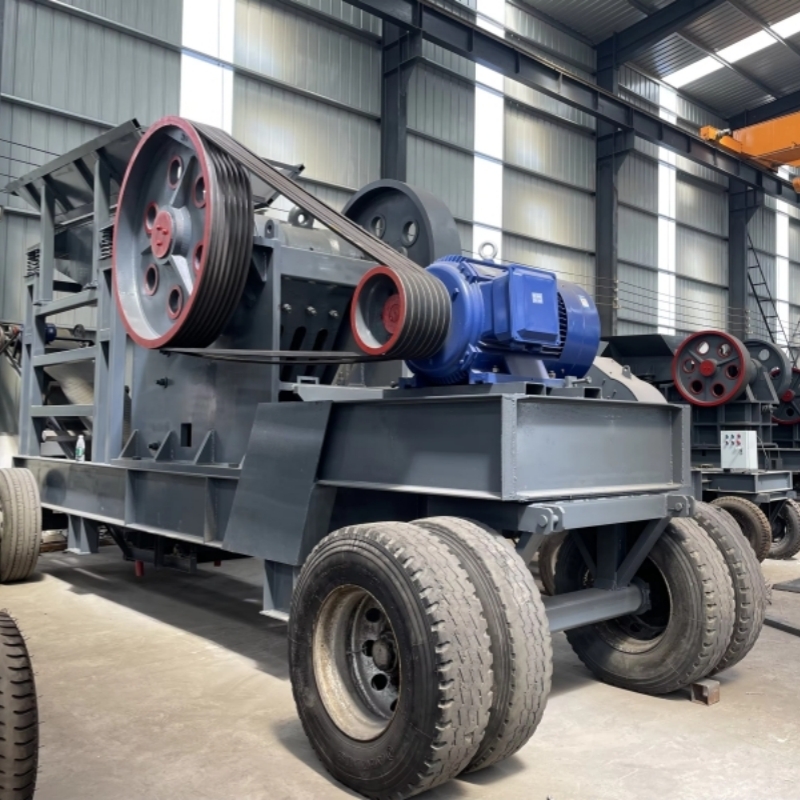

Jaw Mobile Crushing Station consists of a durable chassis that houses a primary jaw crusher, a vibrating feeder, and a vibrating screen, all mounted on a mobile platform for easy transportation. The jaw crusher features two jaw plates—one stationary and one moving—operating in a compressive motion to crush materials efficiently. The vibrating feeder ensures a consistent flow of material into the crusher, while the vibrating screen separates crushed materials into desired sizes. This integrated system allows for seamless operation, providing high productivity and versatility in various crushing applications, including quarrying, mining, and recycling. The mobile nature of the station enables quick setup and adaptability to different work sites.
⊙Customer Feedback
A prominent mining company in South Africa recently integrated the Jaw Mobile Crushing Station into their operations to optimize their mineral extraction processes. Previously relying on stationary crushers, they faced challenges with site accessibility and material handling. After deploying the mobile crushing station, they noted a remarkable improvement in efficiency, with the ability to easily relocate the unit to different sites as needed. The integrated vibrating screen allowed for precise sizing of crushed materials, which significantly reduced waste. The client reported high satisfaction with the machine's performance, emphasizing its reliability and cost-effectiveness, which ultimately led to enhanced productivity and profitability in their operations.
