Heavy Hammer Crusher

Heavy Hammer Crusher is a powerful and high-efficiency crushing machine designed for crushing large materials into smaller sizes in one stage. It is ideal for materials such as limestone, coal, salt, gypsum, and more. With its heavy-duty structure and high crushing capacity, it is suitable for applications in mining, cement, building materials, and road construction. The crusher features a high crushing ratio, reducing material size without the need for secondary crushing. Its durable design ensures long-lasting performance, making it a cost-effective solution for large-scale crushing operations.

  • ≤ 1400
  • 50-500 t/h
  • sale1@hnmineeq.com
  • 0086 16638156296
  • Information

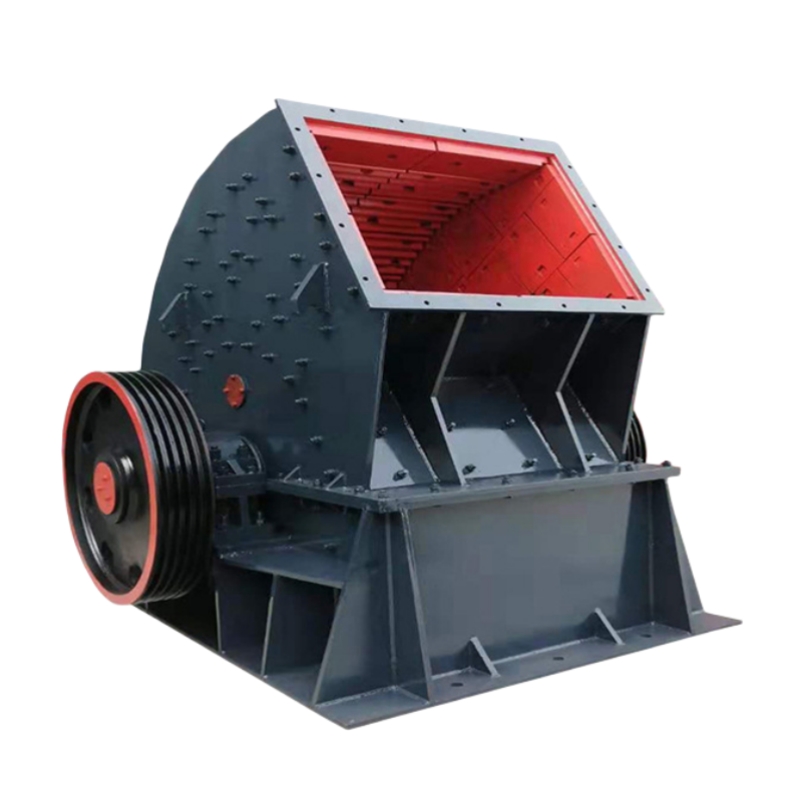

  Heavy Hammer Crusher

   Heavy Hammer Crusher (6)

Product introduction

PCZ series hammer crusher is an advanced version of the PC series, developed based on user feedback and evolving industry demands, combined with our company's experimental data. Compared to traditional hammer crushers, the PCZ series features alloy composite hammer heads for superior wear resistance, increased rotational inertia, and high rotor kinetic energy. This design allows for larger feed sizes, a higher crushing ratio, and reduced maintenance costs. With capacities ranging from 50t/h to 5000t/h, the PCZ series hammer crusher has become the preferred choice for crushing applications across various industries.


Features

  • The heavy hammer crusher features high output, low energy consumption, a simple structure, and easy maintenance.

  • Compared to jaw crushers with the same capacity, it reduces equipment investment, offering lower costs and quicker returns.

  • The grid-free design prevents blockages and adhesion, making it ideal for wet or earth-containing materials.

  • Equipped with an alloy composite hammer head, it minimizes wear and cuts production costs by approximately 35%.



Product Parameters



 Model

 Rolor D*L

(mm)

Charge part size

 (mm)

Size length of charge part

(mm)

 Capacity

(t/h)

Power

(kw)

Dimension

L*W*H(mm)

 PCZ-0706 700*570618*510≤400 50-70 751950*1340*1480
 PCZ-1008 1000*776 860*800 500 100-150 75*2 2600*2000*2180
 PCZ-1010 1000*1018 1040*800 600 150-200 90*2 2600*2240*2180
PCZ-1210 1200*1018 1250*800 650 200-250 110*2 2800*2310*2380
 PCZ-1512 1500*1160 1210*900 750 250-320 132*2 3260*2580*2750
 PCZ-1615 1650*1452 1500*1200 1000 360-420 200*2 3455*2915*3185
 PCZ-2015 2000*1500 1500*1400 1200 450-500 250*2 3880*2900*3560

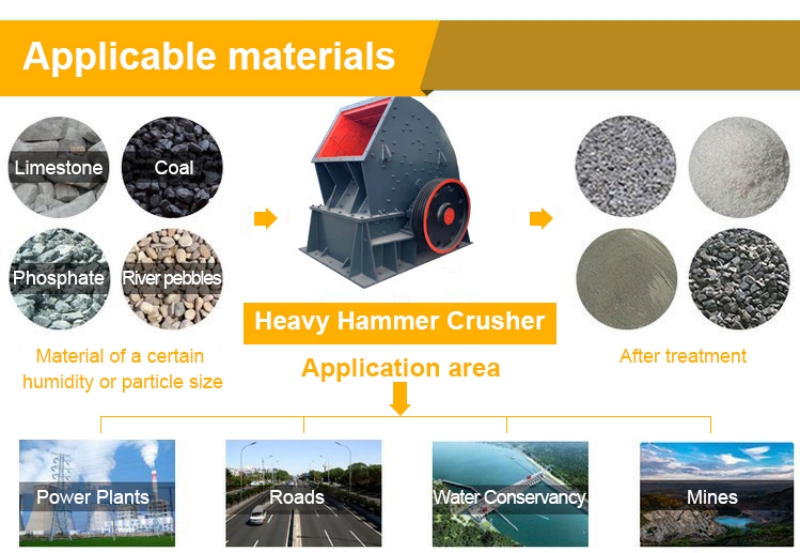

Application Field

                        Heavy Hammer Crusher (14)

Heavy Hammer Crusher is widely applied in the following fields:

  • Mining: Crushing ores and rocks for mineral processing.

  • Cement Industry: Reducing limestone and other raw materials for cement production.

  • Construction: Crushing building materials like concrete, bricks, and stones.

  • Road and Railway Construction: Producing aggregates for infrastructure projects.

  • Coal Industry: Crushing coal for fuel preparation in power plants and other energy applications.


Machine Structure and Working Principle

                        Heavy Hammer Crusher (13)

When the jaw crusher is working, the movable jaw moves periodically to and fro the fixed jaw, sometimes proaching and sometimes leaving. When approaching, the material is crushed due to compression, splitting, and impact between the two jaw plates; When leaving, the crushed material is discharged from the discharge port by gravity.

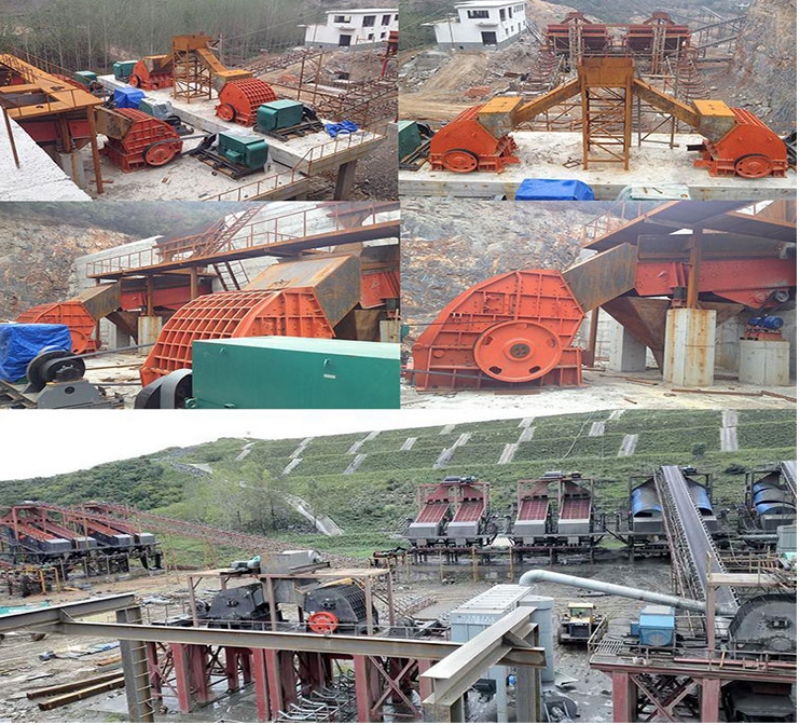

 Customer Showcase

Customer from the United States successfully improved its limestone processing operations by integrating the Heavy Hammer Crusher into its production line. This upgrade allowed the customer to double their production capacity from 200 tons per hour to 400 tons per hour while reducing maintenance costs by 35% due to the durable alloy composite hammers. The grid-free design effectively managed wet limestone, eliminating blockages and leading to a quick return on investment within six months. This case highlights the Heavy Hammer Crusher's efficiency and reliability in the mining industry.
