PE Jaw Crusher
Jaw crusher is a high-efficiency and reliable crushing equipment widely used in industries such as mining, metallurgy, and construction materials. It crushes large materials into smaller particles through the relative motion of two jaw plates, featuring a high crushing ratio and robust durability. This equipment is easy to operate and maintain, making it an ideal crushing solution for your needs.
- ≤ 1020 mm
- 2-1000t/h
- sale1@hnmineeq.com
- 0086 16638156296
- Information

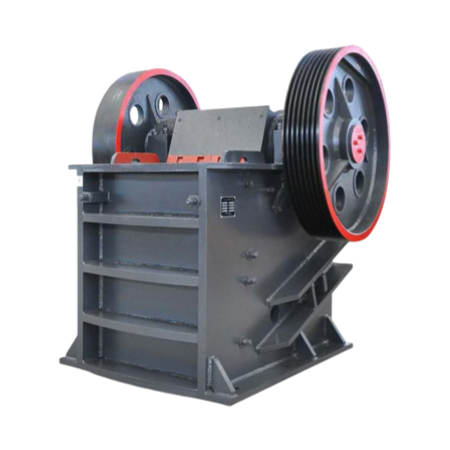

Jaw Crusher
⊙Product introduction
Feed Size: ≤ 1500mm
Production Capacity: 1-1000t/h
Application Range: Metallurgy, chemical industry, building materials, electric power, transportation, and other industrial sectors.

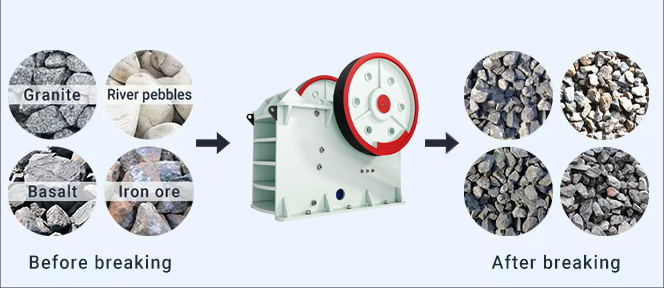

Applicable Materials: Granite, dolomite, pebble, quartz stone, calcite, and other materials.
The jaw crusher is an essential piece of equipment in the ore crushing process, particularly important in the crushing production line. Olive Technology's jaw crushers have undergone continuous innovation and process improvements, leading to significant advancements in structure and technology. The jaw crusher features a simple structure, reliable operation, ease of use, convenient maintenance, and lower costs.

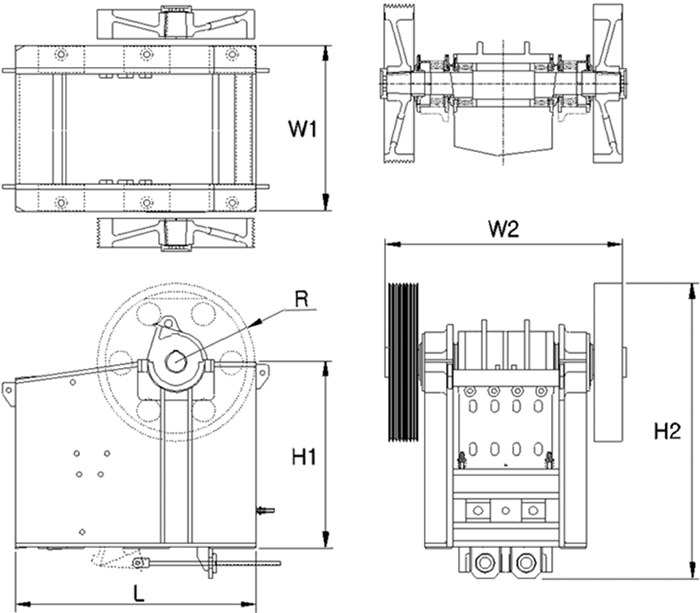

⊙Product Parameters
Model | Size (mm) | Feed Opening Size (mm) | Max Feed Size (mm) | Discharge Adjustment Range (mm) |
Capacity (t/h) | Main Shaft Speed (r/min) | Motor Power (kW) | Machine Weight (kg) | |
| Length | Width | ||||||||
| PE-150 | 150*250 | 250 | 150 | 125 | 15-45 | 1.7-5.6 | 285 | 5.5 | 1000 |
| PE-200 | 200*300 | 300 | 200 | 180 | 20-50 | 3.5-13.5 | 285 | 11 | 1500 |
| PE-250 | 250*400 | 400 | 250 | 210 | 20-60 | 5-22 | 300 | 15 | 2800 |
| PE-400 | 400*600 | 600 | 400 | 340 | 40-80 | 18-60 | 275 | 30 | 7000 |
| PE-500 | 500*750 | 750 | 500 | 425 | 50-100 | 43-102 | 275 | 55 | 13500 |
| PE-600 | 600*900 | 900 | 600 | 500 | 65-180 | 51-145 | 250 | 75 | 19200 |
| PE-750 | 750*1060 | 1060 | 750 | 630 | 80-180 | 122-223 | 250 | 110 | 29000 |
| PE-900 | 900*1200 | 1200 | 900 | 780 | 95-180 | 285-430 | 200 | 132 | 45000 |
| PE-1000 | 1000*1200 | 1200 | 1000 | 850 | 195-280 | 320-470 | 200 | 132 | 51000 |
| PE-1200 | 1200*1500 | 1500 | 1200 | 1020 | 150-300 | 425-765 | 180 | 160 | 100900 |
⊙Application Field
PE jaw crusher is commonly used throughout the industry to reduce the pieces into the required sizes and to impart fineness to the broken material with high quality and efficiency.
Jaw crushers are mainly used for medium-sized crushing of various ores and bulk materials and are mostly used in mining, smelting, building materials, highways, railways, water conservancy, and chemical industries.

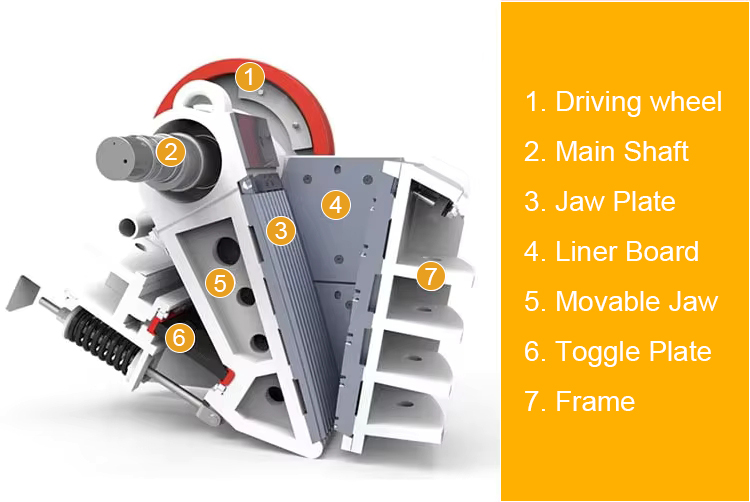

⊙Machine Structure and Working Principle
When the jaw crusher is working, the movable jaw moves periodically to and fro the fixed jaw, sometimes proaching and sometimes leaving. When approaching, the material is crushed due to compression, splitting, and impact between the two jaw plates; When leaving, the crushed material is discharged from the discharge port by gravity.
⊙Patent
Grease Injection Device [Patent No. 10-0614520]
Design of Fixed Jaw Plate [Patent No. 10-0614896]
Crushing Chamber Setting Adjustment [Patent No. 10-1965851]
