Impact Crusher
The impact crusher is a highly efficient crushing machine designed for reducing medium-hard to hard materials, such as limestone, concrete, and asphalt, into smaller, uniform particles. It works by using high-speed rotating rotors and impact plates to break materials upon collision. With features like a high crushing ratio, adjustable output size, and low energy consumption, the impact crusher is widely used in mining, construction, road building, and the recycling industry. Its simple design allows for easy maintenance and cost-effective operation.
- ≤ 860
- 15-310 t/h
- sale1@hnmineeq.com
- 0086 16638156296
- Information
Impact Crusher
⊙Product introduction
Impact crusher is widely used in industries such as water conservation, electricity, and highway construction to produce high-quality sand and stone. It features a three-cavity crushing area, a keyless rotor connection, and high-chrome hammers. Its unique impact liner enables it to handle hard materials with high efficiency, while also saving energy. The crusher delivers cubic-shaped products, with an adjustable output size to meet specific requirements.
⊙Features
High Crushing Efficiency: The impact crusher provides efficient crushing performance, especially with medium-hard and hard materials.
Three-Cavity Crushing Design: This design increases the crushing area, improving capacity and efficiency.
Keyless Rotor Connection: The rotor is connected without a key awl, simplifying maintenance and improving reliability.
High-Chrome Hammer: Equipped with wear-resistant, high-chrome hammers for durability and extended service life.
Unique Impact Liner: Designed to handle hard materials, ensuring high durability and impact resistance.
Energy Saving: High efficiency and optimized design result in lower energy consumption.
Cubic-Shaped Products: Produces well-shaped, cubic products ideal for construction purposes.
Adjustable Output Size: The output size can be easily adjusted to meet different project requirements.
⊙Product Parameters
Model | Specitication (mm) | Size(mm) | Max Feed Size(mm) | Capacity (t/h) | Motor Power(kw) | Overall Dimensions(mm) | Weight (kg) | |
| L | W | |||||||
| PF-0807 | Φ750*700 | 400 | 730 | 300 | 15-30 | 45 | 2210*1490*2610 | 8100 |
| PF-1007 | Φ1000*700 | 400 | 730 | 300 | 25-60 | 55 | 2400*1558*2660 | 9500 |
| PF-1010 | Φ1000*1050 | 400 | 1080 | 350 | 50-80 | 75 | 2400*2250*2620 | 12200 |
| PF-1210 | Φ1250*1050 | 580 | 1080 | 350 | 70-120 | 95 | 2690*2330*2890 | 14100 |
| PF-1214 | Φ1250*1400 | 580 | 1430 | 350 | 130-180 | 132 | 2690*2688*2890 | 19600 |
| PF-1315 | Φ1320*1500 | 860 | 1520 | 500 | 160-250 | 185 | 3096*3273*2667 | 21700 |
| PF-1320 | Φ1320*2000 | 860 | 2030 | 500 | 200-310 | 300 | 3280*3570*2920 | 23400 |
⊙Application Field
Impact crusher is widely used across various application fields, including mining, construction, road building, recycling, quarrying, cement production, aggregate processing, metallurgy, and the chemical industry. Its versatility and efficiency make it suitable for processing materials such as limestone, concrete, asphalt, and other medium-hard to hard materials, enabling the production of high-quality aggregates for diverse construction needs.
Heavy Hammer Crusher is widely applied in the following fields:
Mining: Crushing ores and rocks for mineral processing.
Cement Industry: Reducing limestone and other raw materials for cement production.
Construction: Crushing building materials like concrete, bricks, and stones.
Road and Railway Construction: Producing aggregates for infrastructure projects.
Coal Industry: Crushing coal for fuel preparation in power plants and other energy applications.

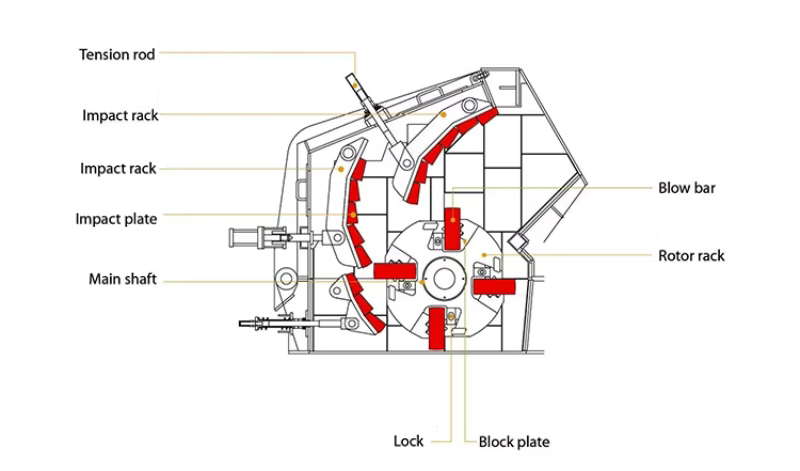

⊙Machine Structure and Working Principle
Impact crusher operates by using high-speed rotation to fling hammers or blow bars against the material fed into the machine. As the rotor spins, these hammers strike the material with great force, causing it to break apart. The broken pieces are then propelled against impact plates, where they undergo further crushing. This process continues until the material reaches the desired size, at which point it is discharged through an adjustable opening. The machine’s design allows for efficient reduction of materials into uniform, cubic-shaped particles.

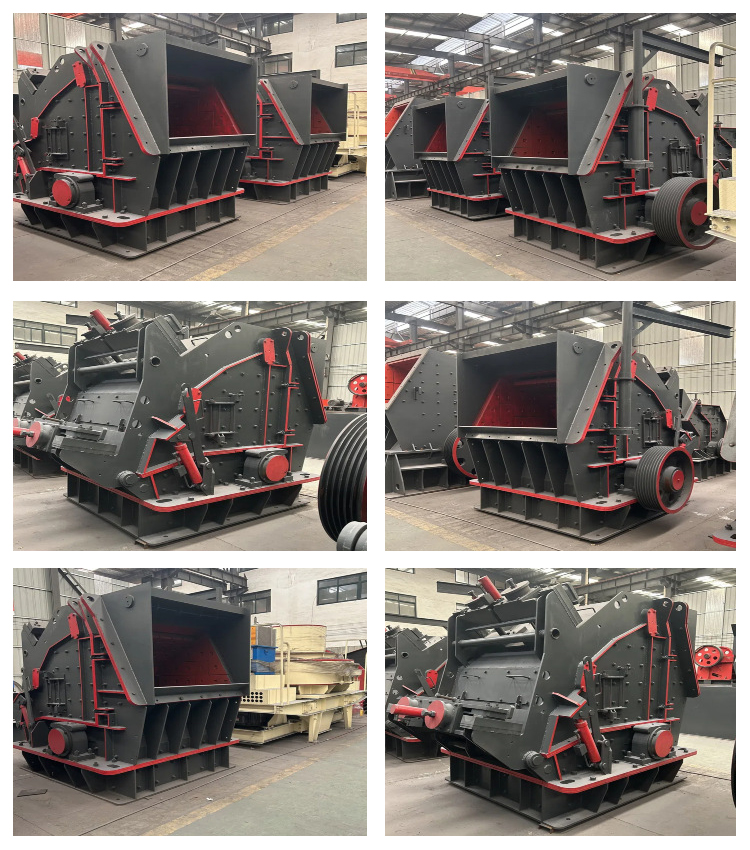

⊙Factory product display
Our factory specializes in the production of high-performance impact crushers, designed to meet the needs of various industries such as mining, construction, and road building. With advanced manufacturing technology and strict quality control, we ensure that each crusher is built to deliver high efficiency, durability, and reliability. Our facility is equipped with modern machinery and staffed by a skilled engineering team, enabling us to produce a wide range of impact crushers with customizable features. We are committed to providing high-quality equipment, timely service, and comprehensive solutions to meet the diverse needs of our global customers.
