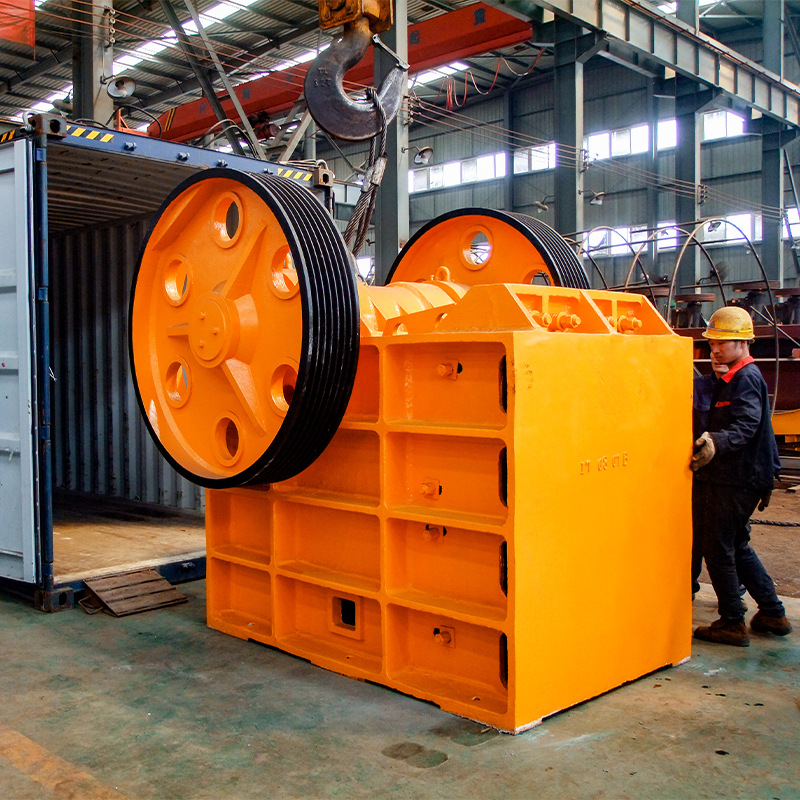

PEX Jaw Crusher
The PEX jaw crusher is designed for fine and secondary crushing of various materials, such as stone, ore, and concrete. It features a smaller feed opening and tighter discharge settings compared to PE crushers, allowing for precise control over output sizes. The machine is built for high efficiency and durability, making it ideal for applications that require fine material production. Widely used in mining, quarrying, and construction industries, the PEX jaw crusher delivers reliable performance and consistent results in processing finer materials.
- ≤ 1020 mm
- 2-1000 t/h
- sale1@hnmineeq.com
- 0086 16638156296
- Information

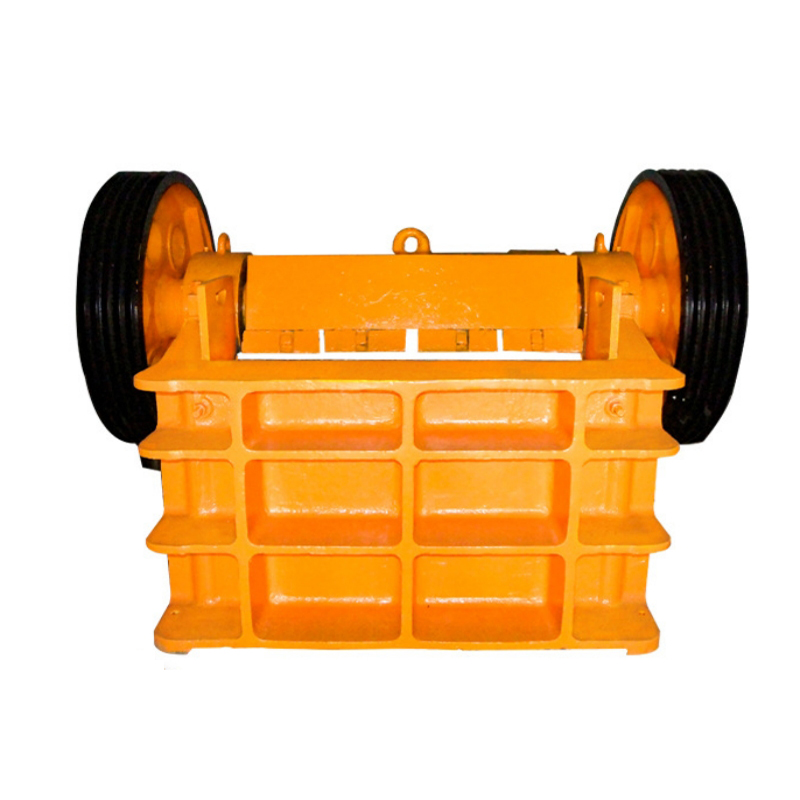

PEX Jaw Crusher
⊙Product introduction
PEX jaw crusher is mainly used for medium-sized crushing of various ores and large materials, and is suitable for industries such as mining, metallurgy, building materials, highways, railways, water conservancy, and chemical engineering. The model of the jaw crusher is defined by the size of the feed opening. Based on the discharge size, jaw crushers are classified into coarse jaw crushers and fine jaw crushers.
⊙Product Parameters
Model | Size (mm) | Feed Opening Size (mm) | Max Feed Size (mm) | Discharge Adjustment Range (mm) |
Capacity (t/h) | Main Shaft Speed (r/min) | Motor Power (kW) | Machine Weight (kg) | |
| Length | Width | ||||||||
| PEX-150 | 150*750 | 250 | 150 | 125 | 15-45 | 1.7-5.6 | 285 | 5.5 | 1000 |
| PEX-250 | 250*750 | 300 | 200 | 180 | 20-50 | 3.5-13.5 | 285 | 11 | 1500 |
| PEX-250 | 250*1000 | 400 | 250 | 210 | 20-60 | 5-22 | 300 | 15 | 2800 |
| PEX-250 | 400*1200 | 600 | 400 | 340 | 40-80 | 18-60 | 275 | 30 | 7000 |
| PEX-300 | 500*1300 | 750 | 500 | 425 | 50-100 | 43-102 | 275 | 55 | 13500 |

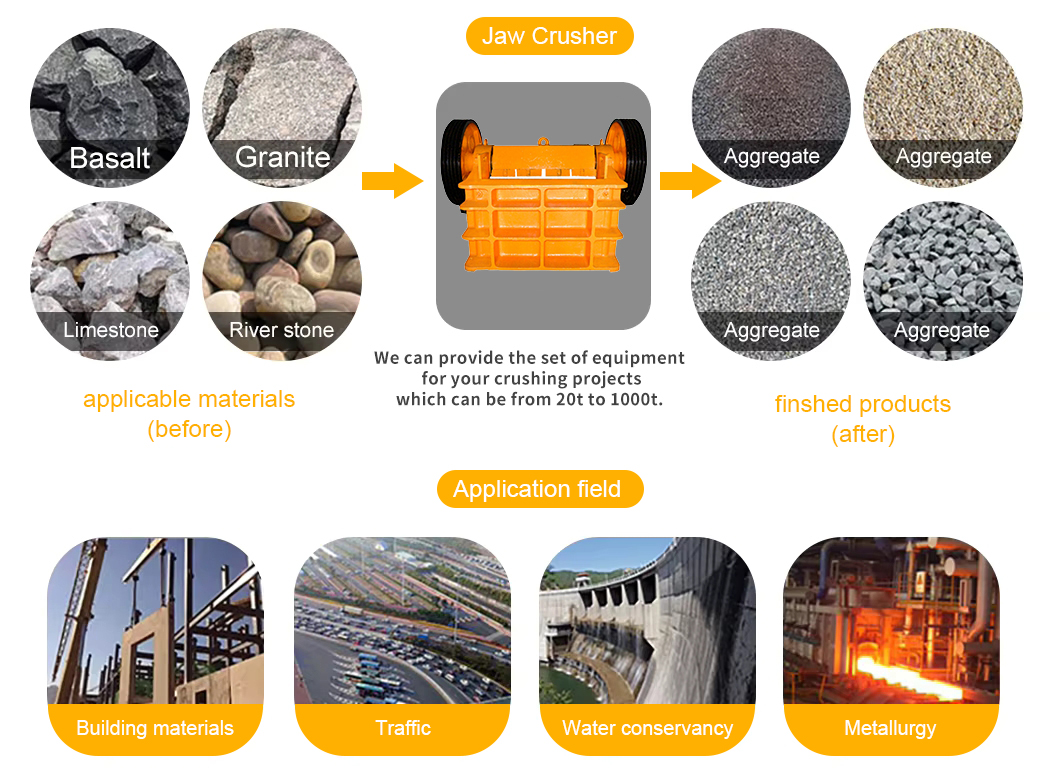

⊙Application Field
PEX jaw crusher is commonly used for secondary and fine crushing in industries such as mining, metallurgy, building materials, highways, railways, water conservancy, and chemical engineering. It is ideal for crushing medium-hard materials like ores, rocks, and concrete, producing smaller particle sizes for further processing or direct use in construction and other applications. Its precise control over output size makes it suitable for projects requiring fine material production.

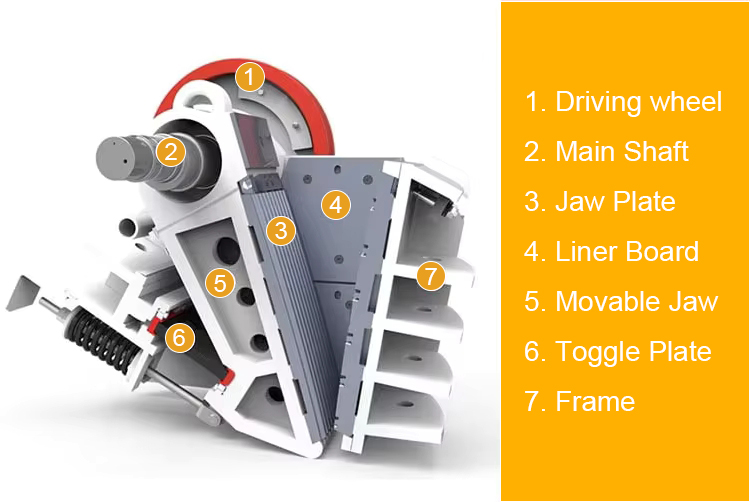

⊙Machine Structure and Working Principle
When the jaw crusher is working, the movable jaw moves periodically to and fro the fixed jaw, sometimes proaching and sometimes leaving. When approaching, the material is crushed due to compression, splitting, and impact between the two jaw plates; When leaving, the crushed material is discharged from the discharge port by gravity.
⊙Patent
Grease Injection Device [Patent No. 10-0614520]
Design of Fixed Jaw Plate [Patent No. 10-0614896]
Crushing Chamber Setting Adjustment [Patent No. 10-1965851]
